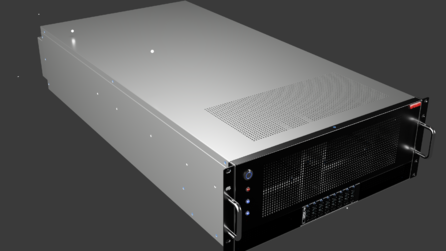

HPCMATE U4008
U4008 has been designed to provide a flexible system configuration for multi purpose high performance computer server.
In brief : U4008 has been designed to provide a flexible system configuration for multi purpose high performance computer server
U4008 Highlight
| Default | Max Configuration | Options | |
|---|---|---|---|
| Power | 2000W Platinum Modular PSU | Configurable up to 5600W | Dual 2200W Titanium CRPS
Automatic switching between 1+1 and 2+0 |
| Storage | 3 x 5.15" dummy cage | Any type of 5.25" hard rack | Depending on models |
| Mother Board | From Mini-ITX up to EEB (13"x14") | Optional PCIe 5.0 x16 extend board | |
| Cooling | Air cooling | Support up to dual 500W CPUs
Support up to 5 x DP GPUs |
|
| Liquid Cooling | Support up to dual 500W CPUs
Support up to 8 x SP GPUs |
Compatible with CoolUX |
U4008 Models
| Model | Socket | DIMM slots | M.2 slots | Max GPU
(double width) |
Cooling | Power | Others |
|---|---|---|---|---|---|---|---|
| 2KHR0 | Single Socket SP5 (LGA 6096), AMD EPYC™ 9004 (TDP up to 500W)
|
8 DIMM slots | 2 | 4 | Air | 2000W | 7x PCIe5.0 x16,
1 x PCIe5.0 x8 3 x MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s) 2 x RJ45 (10GbE) 1 x IPMI 4 x hot swap 2.5" SATA drives |
| 3KIHR1 | Single Intel LGA 4710(Socket E2), Intel® Xeon® 6700E-series, 6500P-series and 6700P-series processor (TDP up to 350W) | 8 DIMM slots | 2 | 5 | Air | 4400W | 5 x PCIe5.0 x16,
6 x MCIO (PCIe5.0 x8 R1S CPU) 2 x RJ45 (1GbE) 1 x IPMI 4 x hot swap 2.5" SATA drives |
| TBD more models |
